# Openshift

## Install KubeMQ operator

### Find KubeMQ Operator

1. Open Operators/OperatorHub
2. Goto Streaming & Messaging
3. Type KubeMQ in search box
4. Click on KubeMQ Enterprise Operator

![](https://2828835384-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M2b9dwAGbMPWty0fPGr%2F-MN7uHD0s-Lxn_jo-TqU%2F-MN7uO4KOISDeStqBVP0%2Fopenshift-1.png?alt=media\&token=fbf66ccf-ef6e-4cdf-bc49-3ca1aa16b75c)

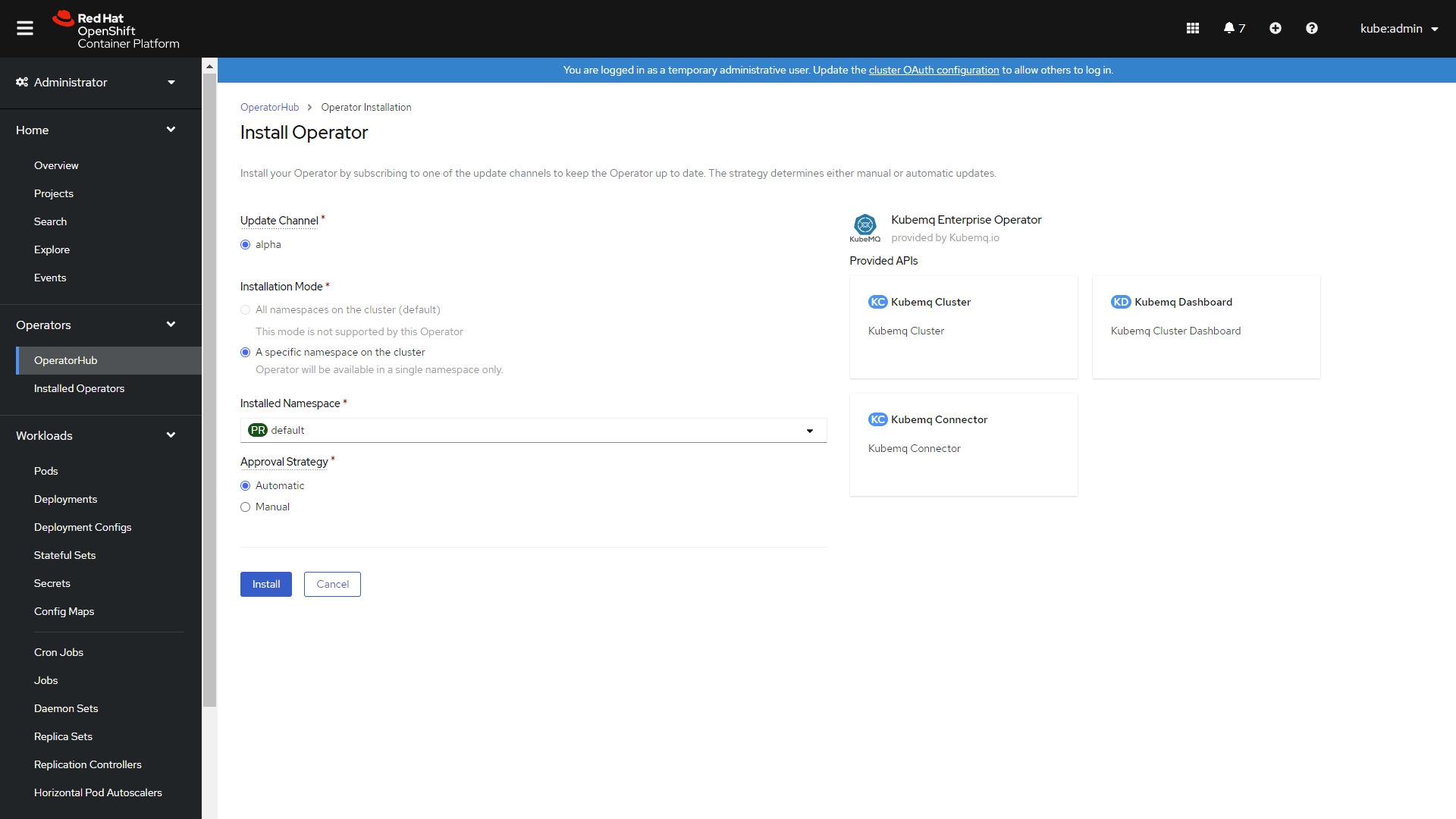

### Install KubeMQ Operator

1. Set Installation mode to a specific namespace on the cluster
2. Set the namespace
3. Click Subscribe

![](https://2828835384-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M2b9dwAGbMPWty0fPGr%2F-MN7uV3TKicP5lZ46UI4%2F-MN7ukXZjYXcgzz-xyKZ%2Fopenshift-2.png?alt=media\&token=91817360-6fc8-425b-968f-56205bd9ecad)

## Verify Operator Installation

![](https://2828835384-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M2b9dwAGbMPWty0fPGr%2F-MN7unFIuI5hT8YGuwY-%2F-MN7vRR5EAR_vqm8ZWPG%2Fopenshift-3.png?alt=media\&token=1f0fcc7e-148c-4b3e-9395-89a61e0cabd3)

![](https://2828835384-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M2b9dwAGbMPWty0fPGr%2F-MN7unFIuI5hT8YGuwY-%2F-MN7vUVuCHKuKuEfQ8zO%2Fopenshift-4.png?alt=media\&token=308a6066-7f45-4d37-a390-462e39c0915c)

## Install KubeMQ Cluster Enterprise Edition

1. Click On KubeMQ Cluster
2. Click on Create KubemqCluster
3. Click on Configure via YAML View
4. A yaml editor will open with default configuration will open

{% hint style="danger" %}
For all installations of Kubemq in Openshift platform, a License key is required.

Obtain free license : [Register](https://account.kubemq.io/login/register)
{% endhint %}

4\. Get the license data from the welcome email

5\. Insert the license data into the spec section

Example:

```yaml
apiVersion: core.k8s.kubemq.io/v1alpha1
kind: KubemqCluster
metadata:
  name: kubemq-cluster
  namespace: kubemq
spec:
  license: |-
    eyJhbGciOiJSUzUxMiIsInR5cCI6IkpXVCJ9.eyJMYWJlbHMiOnsibGljZW5zZS1
    tYXgtaW5zdGFuY2VzIjofsdfsdfsdfSIsImxpY2Vuc2UtdHlwZSI6IkVudGVycHJ
    iYXVkIjoidGhlLWtpdfsstb2YtZ28iLCJleHAiOjE2MTYzNDAzMTEsImp0aSI6In
    oZS1taWdodHktbffflvciIsImlhdCI6MTU4NDgwNDMxMSwiaXNzIjoiS3ViZU1RI
    .BwGlucqbGBsdf3hAaFNXhU-1H7eOLXtkvAM5jSgesMdN5pptjsIIpsvY2DiaF40
    tYa1vQoJwsdBQacgLADBZRrBbnJPKvimAXYNuZ6Nyv9d-V9ez6XoVDq0WhG56r5_
    QikQ5entYqfLdxHqQetwt7Ym_0IwlxzcnqtCKCETkUGijP48UtuOPV3XSUUawXR3
    cLi-NZh0avzp9niXGDxVuCNjRm4iRT6uyUWkxoF25UulkmYHzM69DTBjkN7q2pk1
    6VNKaT7LWQ3knt0ZkPRlhp0WzYrluZQUuXnfRZdL7dPCFtC4E2T6-04bM-OVufUf
    JM272-J-y5eB7_hGnH7bNZQeqweqweqweqe23424wqed
```

Note: the above license is invalid

6\. Click create

![](https://2828835384-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M2b9dwAGbMPWty0fPGr%2F-MN7unFIuI5hT8YGuwY-%2F-MN7wF2IV9uCGaT2R8fs%2Fopenshift-5.png?alt=media\&token=9266eed3-e20d-48d7-91d3-e5c428fba4b4)

## Verify KubeMQ Cluster Installation

![](https://2828835384-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M2b9dwAGbMPWty0fPGr%2F-MN7unFIuI5hT8YGuwY-%2F-MN7wYu1X-7uAVusfNGZ%2Fopenshift-6.png?alt=media\&token=df018b71-4084-4a36-8ebf-6594b4d761f0)

## Configuration

Check out cluster configuration setting available:

{% content-ref url="../../configuration/cluster" %}
[cluster](https://docs.kubemq.io/configuration/cluster)
{% endcontent-ref %}
