Pub/Sub

General
The publish-subscribe pattern (or pub/sub, for short) is a messaging pattern where senders of messages (publishers), do not program the messages to be sent directly to specific receivers (subscribers). Instead, the programmer “publishes” messages (events), without any knowledge of any subscribers there may be.
Similarly, subscribers express interest in one or more events and only receive messages that are of interest, without any knowledge of any publishers.

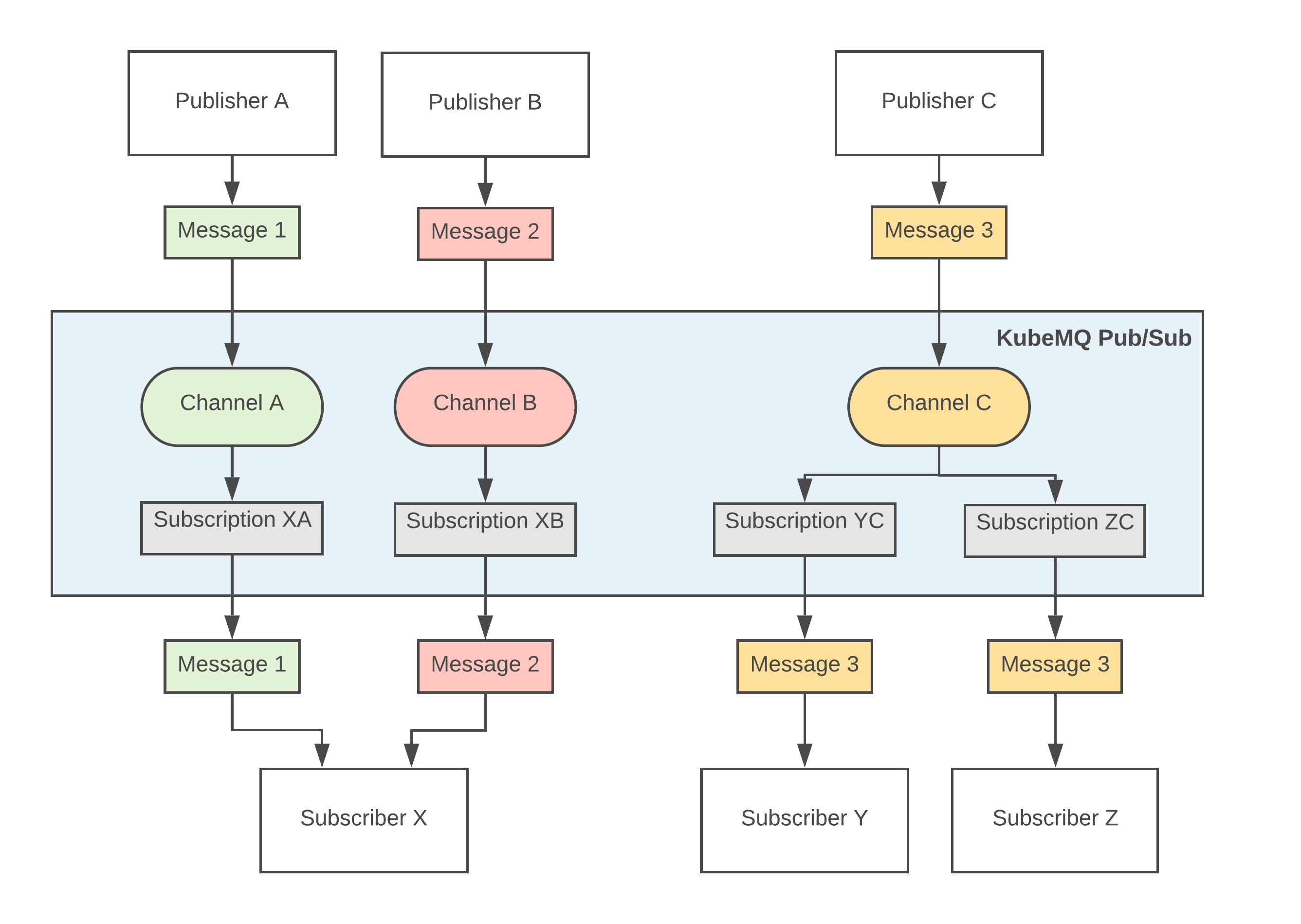

Pub/Sub Message Pattern
Core Features
KubeMQ supports Publish-Subscribe messages patterns with the following core features:
Events - An asynchronous real-time Pub/Sub pattern.
Events Store - An asynchronous Pub/Sub pattern with persistence.
Grouping - Load balancing of events between subscribers
Partitioning - Channels/Topics based wildcards
Events
Events are an asynchronous real-time Pub/Sub pattern. In Events, multiple senders can send real-time messages to various receivers; however, only if they are currently connected to KubeMQ; there is no message persistence available in this pattern.
Use Cases
‘Events’ pattern is suitable for cases such as publishing streaming data, logs, notifications, etc.
Demo - Basic
Demo - Group (Load Balancing)
Demo - Wildcards
Events Store
Events Store is an asynchronous Pub/Sub pattern with persistence. In Events Store, multiple senders can send messages to various receivers even if they are not currently. Any receiver can connect to KubeMQ and replay one, any, or all of the messages stored for a specific channel.
Events Store Replay Messages Types
KubeMQ supports six types of Events Store subscriptions and replay:
Type
Description
New Events
KubeMQ will send only new events
First Event
KubeMQ will replay all events from the first stored events, as well as send new events
Last Event
KubeMQ will replay the last event and continue to send new events
From Sequence
KubeMQ will replay events from a specific sequence and continue to send new events
From Time
KubeMQ will replay events from a specific time in the past and continue to send new events
From Time Delta
KubeMQ will replay events from the particular time delta back (i.e., 5 min back) and continue to send new events
Start From New Events
Start From First Event
Start From Last Event
Start From Sequence
Start From Time
Start From Time Delta
Grouping - Load Balancing
KubeMQ supports grouping (load balancing) of multiple receivers to share the load
Demo
Example 1
Example 2
Example 3
Unique Client ID
The uniqueness of a client ID is essential when using Events Store. At any given time, only one receiver can connect with a unique Client ID. If two receivers try to connect to KubeMQ with the same Client ID, one of them will be rejected.
Client ID and Subscription Types Relations
For each unique Client ID, KubeMQ saves the subscription type in which the client connected; messages can only be replayed once per Client ID and Subscription type.
For example, Receiver with Client ID client-foo-1 subscribes to a channel foo.bar in First Event mode. They will get all the messages stored in KubeMQ for foo.bar channel from the first message, and then continue to get new events as they come. If this receiver will disconnect from KubeMQ and re-connect again with any subscription type, only new events in foo.bar will be delivered for this specific receiver with Client ID client-foo-1.
If a Receiver wishes to receive messages on foo.bar again, they should subscribe again with a different Client ID than client-foo-1 such client-foo-1-retry.
Use Cases
Events Store pattern is suitable for cases in which events are necessary, such as worker’s pool, chats, and inbox related applications.

Queues

RPC
